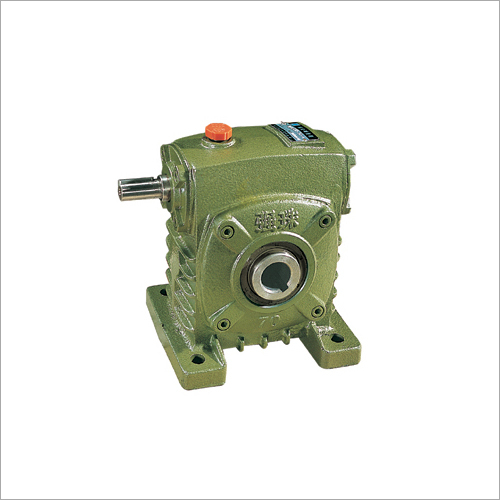

WPRKS Helical Gearbox

100 - 3000 USD ($)/Piece

Get a Price/Quote

Product Details:

Supply Ability : 30000 Piece Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Price 100 - 3000 USD ($)/Piece
Minimum Order Quantity 20 Piece

Trade Information

Supply Ability 30000 Piece Per Month
Delivery Time 20 Days

Product Description

We are serving our valuable clients by providing them best quality WPRKS Helical Gearbox which is widely used in various industrial and mechanical applications for transmissions. It is used to adjust the rotation angle by 90 degree when mounted on perpendicular shafts. The delivery of the same is done by us at cost-effective prices.

High torque helical gearbox WP series cast iron worm reducer size 50,60,70,80,100,120,135,155,175,200,250. base on years of experiences uses designed teeth surface with unsurpassed torque transfer performance with great performance, efficiency and cost. Worm gear system transmits power through sliding contact, resulting in extremely low vibration, noise, little backlash and self-locking property.

The structural strength of our cast iron, Heavy-duty Right angle series reducers are available in speed ratios ranging from 10:1 to 60:1. Ratio ranging of double step from 200:1 to 900:1

Also, our gearboxes are supplied with a breather plug and oil mirror which you can judge whether enough oil inside.

Technical Specification :

Size	Input (kw)	Ratio	A	AB	B	BB	CC	H	HL	M	N	E	F	G	Z	Flange					Input shaft			Output shaft			Weight
Size	Input (kw)	Ratio	A	AB	B	BB	CC	H	HL	M	N	E	F	G	Z	LA	LB	LC	LE	LZ	Q	U	TxV	LS	S	Wxy	Kg
50	0.18	1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60	151	83	114	97	50	176	50	120	140	95	110	15	12	115	95	140	4	M8	31	11	4x12.8	40	20	6x22.8	8
60	0.37		167	94	150	112	60	204	60	130	150	105	120	17	12	130	110	160	4	M8	33	14	5x16.3	50	25	8x28.3	11
70	0.37		200	109	168	131	70	236	70	150	190	115	150	20	15	130	110	160	4	M8	40	14	5x16.3	60	30		17
80	0.75		202	109	194											165	130	200		M10	42	19	6x21.8	65		10.38.3
80	1.5		225	119	214	214	80	268	80	170	220	135	180	20	15	165	130	200	4.5	M10	48	19	6x21.8	75	35	12x4.3	22
100	1.5		280	145	254	254	100	370	100	190	270	155	220	25	15	165	130	200	4.5	M10	52	24	6x21.3	85	40	14x48.3	38
120	2.2/3.0		333	177	282	282	120	440	120	230	320	180	260	30	18	215	180	250	5	M12	52	24	8x27.3	95	45	18x64.4	64
135	3.0.4.0		375	193	317	317	135	480	135	250	350	200	290	30	18	215	180	250	5	M12	63	28	8x27.3	110	60	20x	85
155	5.5		448	228	382	382	135	531	135	275	390	220	320	35	21	265	230	300	5	M12	63	28	8x31.3	110	70	74.9	118
175	5.5/7.5		481	248	402	402	160	600	160	310	430	250	350	40	21	265	230	300	5	M12	83	38	8x31.3	125	80	22x85.4	165
200	11		543	275	467	467	175	666	175	360	480	290	390	40	24	300	250	350	6	M16	114	38	10x41.	155	85	22x90.4	236
250	11/15/20		636	316	552	360	200	800	200	460	560	380	480	45	28	300	250	350	6	M16	114	42	12x45.3	155	115	28x116.4	39
